(Malaysia Distributor) BoxLight AEX335ST Ultra Long Life Short Throw Projector
BoxLight AEX335ST Ultra Long Life Short Throw Projector
New generation HLD (High Lumen Density) LED light source shows the clear, bright, true color image under easy setup features and provide 30,000 hours light source life time to reduce the maintenance cost.
· 3LCD Color Balance
· 360° Projection Technology
· Powerful Correction Function
· Up to 30,000 hours Lamp Life Time
· Available display via USB or RJ45 cable
· 3 Years Hardware Warranty
· 3 Years or 30,000 hours Lamp Warranty which ever come first

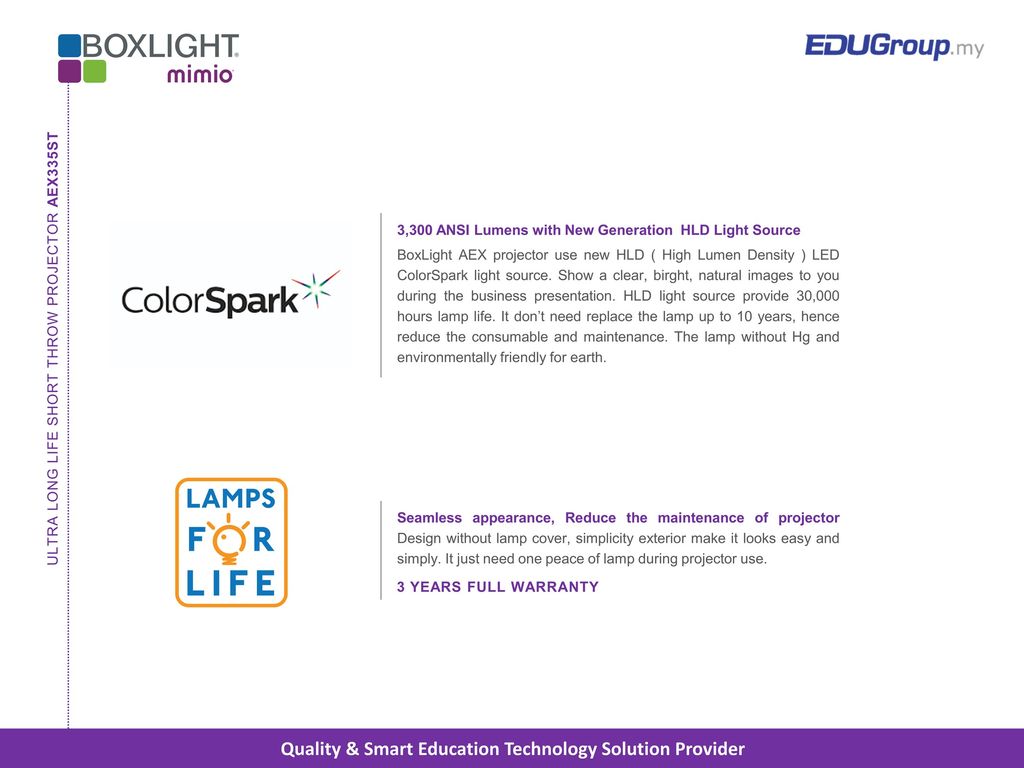

HLD LED LIGHT SOURCE
The projector with new generation light source, HLD (High Lumen Density) LED ColorSpark, provide the real color of LED light source. Show a clear, bright, natural images to you during the business presentation. Provide the users a particularly prominent experience.
30,000 HOURS LAMP LIFE TIME
HLD LCD light source provide 30,000 hours lamp life. it don't need replace the lamp up to 10 years. it’s reduce the consumable and maintenance. The Lamp without mercury and environmentally friendly for earth.
SUPPORT 360° PROJECTION
The projector supports the following project ways :-
Front
Rear
Ceiling / Front
Ceiling / Rear
Auto ceiling / Front
Auto ceiling / Rear

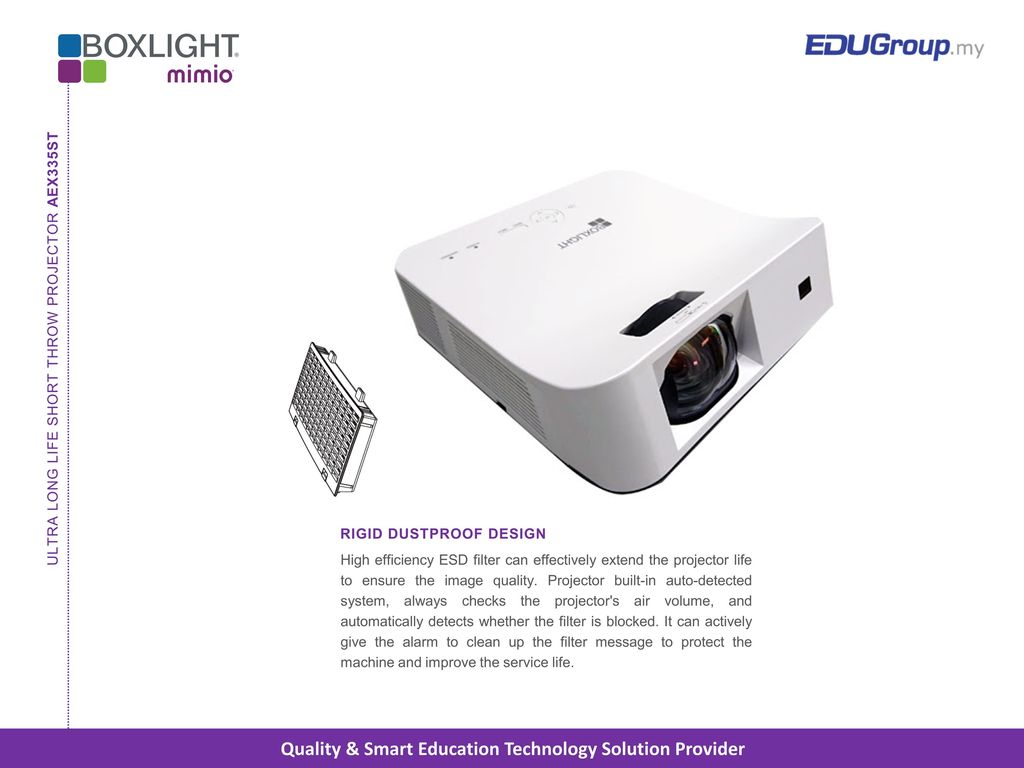

RIGID DUSTPROOF DESIGN
High efficiency ESD filter can effectively extend the projector life to ensure the image quality. Projector built-in auto-detect system, always checks the projector's air volume, and automatically detects whether the filter is blocked. It can actively give the alarm to clean up the filter to protect the machine and improve the service life.
ULTRA LONG LIFE SHORT THROW PROJECTOR
Model
AEX335ST
OPTICAL SPECIFICATIONS
Brightness
3,300 ANSI Lumen
Display Technology
3LCD (High Lumen Density)
Contrast Ratio
100,000 : 1
Resolution
XGA (1024 x 768)
Light Source
(HLD 203+) + P2W
Light Source Time
30,000 Hours
Aspect Ratio
4:3 (Standard) / 16:9 (Compatible)
PROJECTION LENS
Focus
Manual
Throw Ratio
0.46:1 (80" @ 0.75)
F
F = 1.8
f
f = 6.08mm
Screen Size
0.455m~0.943m (50"~100")
GENERIC SPECIFICATIONS
Speaker
1 x 16W
Scanning Frequency
H-sync Frequency 15~91KHz / V-sync Frequency 24~85Hz
Computer Signal Input
PC, VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, Mac
Video Compatibility
PC, SECAM, NTSC 4.43, PAL-M, PAL-N, 480i, 480p, 576i, 576p, 720p, 1080p and 1080i
Power Compatibility
420W
ECO Standby Mode
<0.5W
Network standby
<2W
Keystone Correction
V : ±15°(auto + manual), H : ±15°(manual)
Pincushion / Barrel Correction, Corner Keystone
OSD (Languages)
26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korea, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi.
Input Terminals
2 x VGA
2 x HDMI 1.4
1 x Video
1 x RCA
1 x Audio in (Left / Right)
1 x Audio in (Mini-Jack 3.5mm)
1 x USB-A 2.0
1 x USB-B (Display)
1 x RJ45 (Display)
Output Terminals
1 x VGA
1 x Audio out (Mini-Jack 3.5mm)
Other Terminals
1 x RS232
1 x RJ45 (Control)
1 x USB-B (for Upgrade)
MECHANICAL SPECIFICATIONS
Power Requirement
AC 100–240 V ~ 50-60 Hz
Net Weight
5.5kg
Max Dimensions (DEPTH x WIDTH x HEIGHT)
365mm x 365mm x 140mm
PACKAGE INCLUDES
1 x Power cord
1 x VGA cable
1 x Remote control
1 x Service Card
1 x Quick Start Guide (for Projector)
MIMIOFRAME PROJECTION DISTANCE
78" - B78X
?? meters
87" - B87W
?? meters
