(Malaysia Distributor) BoxLight Multimedia Projector Pro ANX425

RM 3,800.00

BoxLight multi-media projector, easy installation, vivid color performance.

·  Powerful correction function
·  Latest IRIS technology
·  3LCD color balance
·  Up to 10,000 hrs lamp life time
·  Available display via USB or RJ45 cable
·  Plentiful and practical projection display modes

EXCELLENT IMAGE EXPRESSION

Brightness: 3000 - 4200 lm
While using the projector indoor with lights on, true brightness projector still producing vivid color screen.

Color: 3LCD balance color performance
AN-series come with 3LCD technology, output vivid color and exquisite picture quality with different brightnesses. It shows clear, bright and natural images during your business presentation, provide prominent experience to clients.

Contrast: The latest IRIS increase the contrast
AN-series using latest dynamic IRIS contrast enhancement technology, greatly enhance the contrast of picture. Compared to traditional LCD projectors, it can provide the highest 3000:1 / 15000:1 contrast ratio, the perfect purest black color, and the clear picture, structured and subtle image to bring superior visual impact.

USER-FRIENDLY TECHNOLOGY

Powerful correction function
AN-series come with convenient manual and automatic Vertical correction, and manual Horizontal correction function. Users also can use Conrner Keystone, Pincushion/Barrel Correction to adjust the projected picture. These function allow users to project their screen in any uneven surface.

Logo capture function in start screen
By means of OSD menu selection, users can set their own business or personal images as a start logo. User can show their personalised logo during presentation, breaking the stereotyped image of the default start logo.

Select Color modes for better image
There are dynamic, standard, cinema, blackboard, color palette and other projection mode selection. Whether using whiteboard or blackboard, different wall environment, projection mode can be adjusted to correct the screen color.

Password Lock and Anti-Theft Function
User's power-on password protection and keyboard or remote control lock function can avoid the wrong projector operation and protect projector from theft. In addition, the projector is equipped with Kensington anti-theft lock slot and security bar, put on security cable to prevent the project being stolen.

Plentiful interface, more expanded display interface: RJ45 and USB port
Not only the mainstream interface but also RJ45 and USB terminals can input any kind of signals. USB slot can support data reading and wireless projection function. User can plug the optional wireless dongle to achieve IOS / Android tablet and mobile devices projection via wireless connection.

EASY MAINTENANCE

10,000 hours lamp life time
Philips new generation bulbs, up to 10,000 hours life time (ECO mode), it can tremendously reduce the projector maintenance cost.

Rigid dustproof design
High efficiency HEPA electrostatic dust filter can effectively extend the projector life and ensure the image quality. Projector built-in auto-detected system, always checks the projector's air volume, and automatically detects whether the filter is blocked. It can actively activate the alarm of filter clean up to protect the machine and improve the projector service life.

MULTI-MEDIA PROJECTOR

Model
ANX425


OPTICAL SPECIFICATIONS

Brightness
4200 ANSI lumen

Display Technology
3LCD

Contrast Ratio
15,000:1 (With IRIS and ECC mode)

Resolution
XGA (1024x768)

Lamp Consumption
Philips 218W

Noise
ECO: Max 34.9dB, Normal: Max 38.9dB

Lamp Life Time
ECO: 10,000 hours, Normal: 5000 hours

Aspect Ratio
4:3 (Standard) / 16:9 (Compatible)

PROJECTION LENS

Zoom/Focus
Manual

Throw Ratio
1.48~1.78:1

F
F:1.6~1.76

f
19.158~23.018mm

Screen Size
0.888~10.937m (30"~300")

GENERIC SPECIFICATIONS

Speaker
1 x 10W

Scanning Frequency
Hsync Frequency 15~100KHz / Vsync Frequency 48~85Hz

Computer Signal Input
PC, VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA, Mac

Video Compatibility
PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, 480i, 480p, 576i, 576p, 720p, 1080p and 1080i

Power Requirement
100~240V @ 50/60Hz

Power Consumption
270W (ECO: ~0.5W)

ECO Standby Mode
~0.5W

Network standby
~3W

Keystone Correction
V: ±30°(auto+manual), H: ±15°(manual), Pincushion/Barrel Correction, Corner Keystone

OSD (Languages)
26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korea, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi

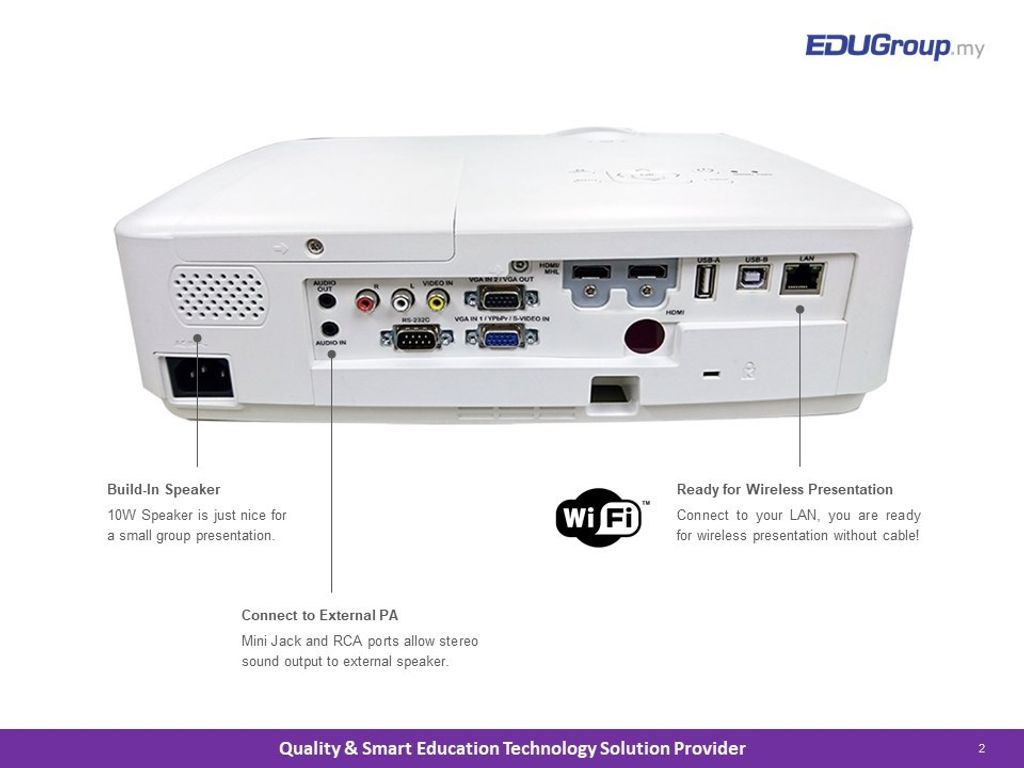

Input Terminals
Audio in (mini jack, 3.5mm) x 1, YCbCr/ Component x 1 (share with VGA in1), Video x 1; Audio in (L/R)-RCA x 2, S-video x 1 (share with VGA in1), HDMI x 2 (One is Compatible with MHL), USB-Ax1 (support MemoryViewer and WiFi Dongle), USB-B x1 (Display), RJ45x1 (Display)

Output Terminals
VGA x1 (Share with VGA IN 2), Audio out (mini-jack,3.5mm) x1

Other Terminals
RS-232 x 1, RJ45 x 1 (for control), USB-B x 1 (for up-grade), Mini USB x 1 (for interactive)

ACCESSORIES

Standard
Power cord, VGA cable, Remote control, CD (Owner's Manual), QSG (for Projector)

Optional
USB Display Dongle

MECHANICAL SPECIFICATIONS

Power Supply
AC 100–240 V ~ 50-60 Hz

Net. Weight (KG)
3.2 Kg

Max Dimensions (WxHxD mm)
347 (W) x 257 (D) x 109 (H) mm
